Description

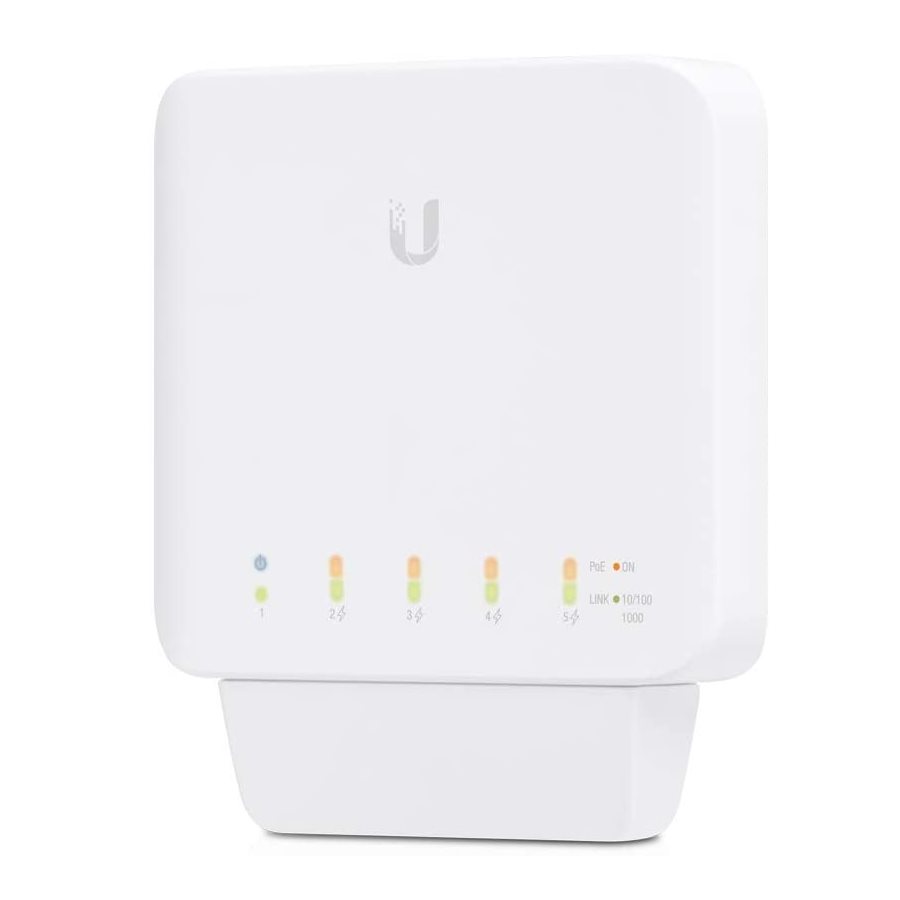

Ubiquiti 5-Port Layer 2 Gigabit Switch With PoE Support
USW-FLEX
Specifications
Voltage Range
- Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
- Weight: 230 g (8.11 oz)
- Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
- Management Interface: Ethernet In-Band
- PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
- Max Power Consumption (Excluding PoE Output): 5W
- Max PoE Wattage Per Port: 15.4W
- LEDs System RJ45 Data Ports: Status, PoE; Link/Speed/Activity
- ESD/EMP Protection: ± 16kV Air, ± 16kV Contact
- Operating Humidity 5 to 95% Noncondensing
- Certifications CE, FCC, IC
- Powered by 802.3af: 8W
- Powered by 802.3at: 20W
- Powered by 802.3bt: 46W
- Powered by PoE Adapter (Enabled in Controller): 46W
Voltage Range
- 802.3af: 44 – 57V
- 802.3at/bt: 50 – 57V
- 46W PoE Output: -40 to 55° C (-40 to 131° F)
- 25W PoE Output: -40 to 65° C (-40 to 149° F)
